Vertical Stack – IKV HKV

Overview
Standard Model
Catalogue
ERV
Retrofit
Cut Sheets
Performance Data
Guide Specifications
Unit Drawings
Installation & Operation
Maintenance & Troubleshooting
ComfortZone
Overview

ATTENTION: EC Motors are available on our InnKeeper vertical stacked heat pumps as an option. In order to accommodate an ECM option the IKV 015 and 018 will require a larger cabinet and chassis. The InnKeeper sizes 008 thru 012 remain in the standard InnKeeper cabinet & chassis size. The InnKeeper sizes 015 and 018 will be supplied in the larger HomeKeeper cabinet & chassis size.

EC motors are standard on The HomeKeeper units. The HomeKeeper sizes 016 thru 036 will remain in the standard HomeKeeper cabinet & chassis size.

Overview

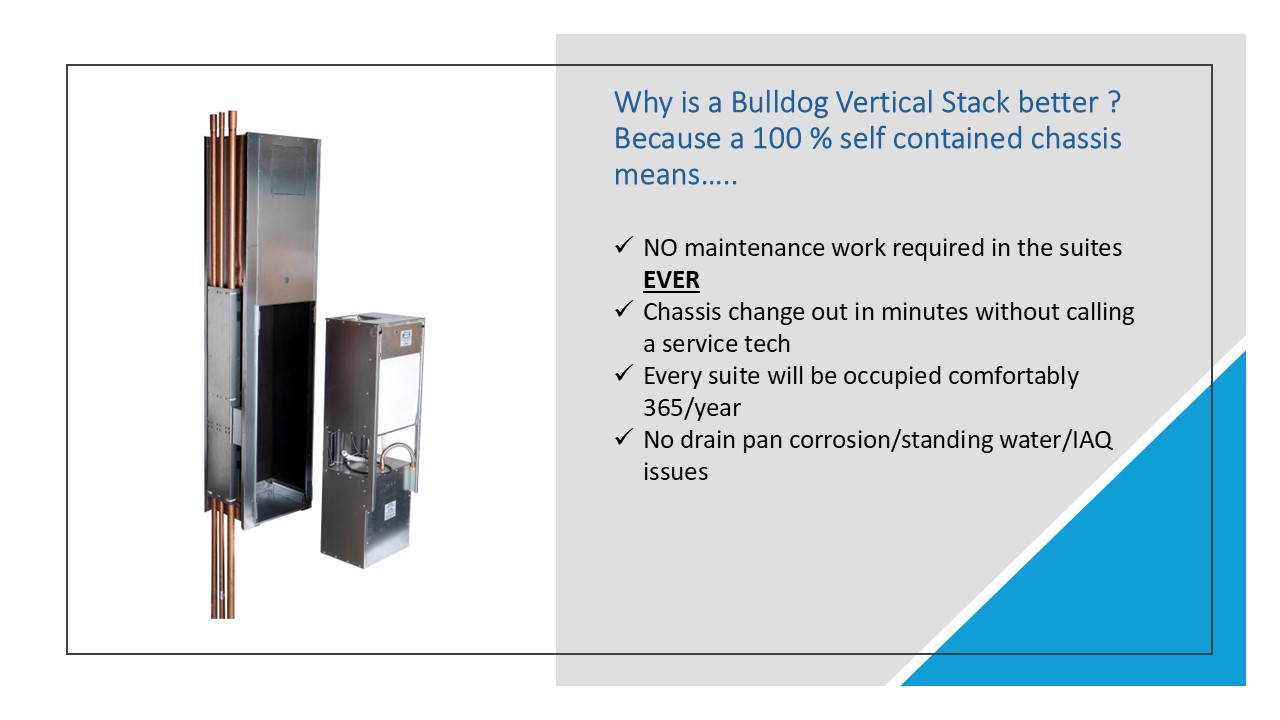

CGC did not invent the Vertical Stacked Heat Pump — we just perfected it.

  • 100% Completely removable chassis

  • Very low sound levels

  • Multiple supply & return air knock outs (left ,right, rear)

  • Small footprint increases floor space

  • Drywall mounts directly on cabinet

Standard Model

BULLDOG InnKeeper Models 008 to 018

3/4 – 1 1/2 tons                   18″W x 14″D x 84″H



BULLDOG HomeKeeper Models 016 to 036

1 /4 – 3 tons                         21″W x 20″D x 84″H



Catalogue

Front Panel Brochure

IKV HKV Front Panels

Bulldog Vertical Stack Plug In Play Brochure

Bulldog Vertical Stack Chassis Plug In Play

ERV

Integral ERV Brochure

ERV Brochure

Retrofit

Retrofit Leaflet

Bulldog RetroKeeper Leaflet

Cut Sheets

Standard (IKV/HKV)

Vertical Stack Cut Sheet – June 2020

E-Series (IEV/HEV)

Vertical Stack E-Series Cut Sheet – June 2020

Performance Data

AHRI Data

AHRI IKV HKV – HYBRID – January 2025

Standard Performance Data

Please contact factory for details.

Guide Specifications

Guide Specifications

IKV HKV GS .PDF – December 2024

IKV HKV GS .DOC – December 2024

Unit Drawings

Standard Unit Drawings

  1. IKV_UNI_DD
  2. HKV_UNI_DD
  3. HKV2_UNI_DD

ERV Units

  1. IKEC ERV 008-018
  2. HKEC-1 ERV 016-030
  3. HKEC-2 ERV 036-048
Installation & Operation

Installation and Operation Manual

Standard:

IKV HKV Universal IOM – August 2020

Riser and Cabinet Installation Manual – Aug 2017

E-Series:

IKV HKV ERV IOM – July 2020

Riser:

Riser Mounting Instructions

Start Up Video: IKV/HKV Start Up

For technical support, please contact our Service Manager at 1-888-220-5551 or via email: [email protected]

To request technical sales information please contact your local BULLDOG Representative or our Sales Division at 1-888-220-5551 or via email: [email protected]

Maintenance & Troubleshooting

Maintenance and Troubleshooting

Like everything else about the BULLDOG System, maintenance is simple, well thought out and easily done. Essentially, it consists of regular filter changes. the filters are located on the front of the unit for easy access. In the vertical stacked model all mechanical components are located in the removable chassis. In the event of unit failure the chassis can be removed and replaced with an operating chassis in a matter of minutes. This can be done by property’s maintenance staff, making the BULLDOG unit fully operational again with minimal downtime. The chassis can then be repaired at a convenient location. Central system components require simple scheduled maintenance program as recommended by the manufacturer. For complete maintenance instructions, consult the Installation and Operations Manual for the IK & HK Vertical Stacked Products.

Always remember to disable the unit using the disconnect before servicing to prevent injury or death due to electrical shock or contact with moving parts.

For assistance in diagnosing BULLDOG Heat Pumps the Trouble Shooting Guide below is downloadable or printable PDF file: BULLDOG Diagnosis Table

ComfortZone

Radiant In Floor Heating

Brochure: ComfortZone 2021

BULLDOG Facts

Did you know that tens of thousands of BULLDOG Heat Pumps are in use across North America? The building containing the most BULLDOG systems is located in New York City, in a 60-story tower at 450 West 42nd St. This complex houses more than 1,700 BULLDOG units.
